Introduction
While today’s marine vessels may be powered by a variety of propulsion systems—including fully electric drives, medium-speed 4-stroke engines, and even hybrid solutions—the vast majority of the world’s large commercial ships still rely on the brute force of 2-stroke marine diesel engines. These powerplants are designed to deliver steady, unrelenting power on the open sea. Unlike the engines in cars or trucks, 2-stroke marine engines are built for endurance, efficiency, and simplicity. This article breaks down how they work, which models rule the industry, and how engine choice varies depending on the type of ship.
How 2-Stroke Marine Engines Work
A 2-stroke marine engine completes its combustion cycle in just one crankshaft revolution. That means for every turn of the shaft, there’s one power stroke—giving it a significant edge in torque and power output over 4-stroke engines, which require two revolutions for the same cycle.
Unlike 4-stroke engines, which separate intake, compression, combustion, and exhaust across two crankshaft revolutions, 2-stroke engines combine these stages into a single up-and-down movement of the piston. This results in:
- One power stroke per revolution
- Higher torque at lower RPMs
- Simpler mechanical design with fewer moving parts
This streamlined cycle is especially effective for large marine vessels, where continuous, heavy-duty operation is essential for long voyages and cargo efficiency. That means for every turn of the shaft, there’s one power stroke—giving it a significant edge in torque and power output over 4-stroke engines, which require two revolutions for the same cycle.
What Makes Them Unique:
- Crosshead Design: Keeps crankcase oil and cylinder oil separate, improving lubrication and reducing contamination.
- Uniflow Scavenging: Fresh air enters from the bottom, exhaust exits at the top. This design improves airflow and combustion.
- Turbocharging: More air = more power. Exhaust-driven turbochargers feed high-pressure air into the scavenge system.
2-Stroke Marine Engine Construction: From Bedplate to Exhaust Valve
A 2-stroke marine diesel engine is built like a vertical tower, and its structural hierarchy from bottom to top is as follows:

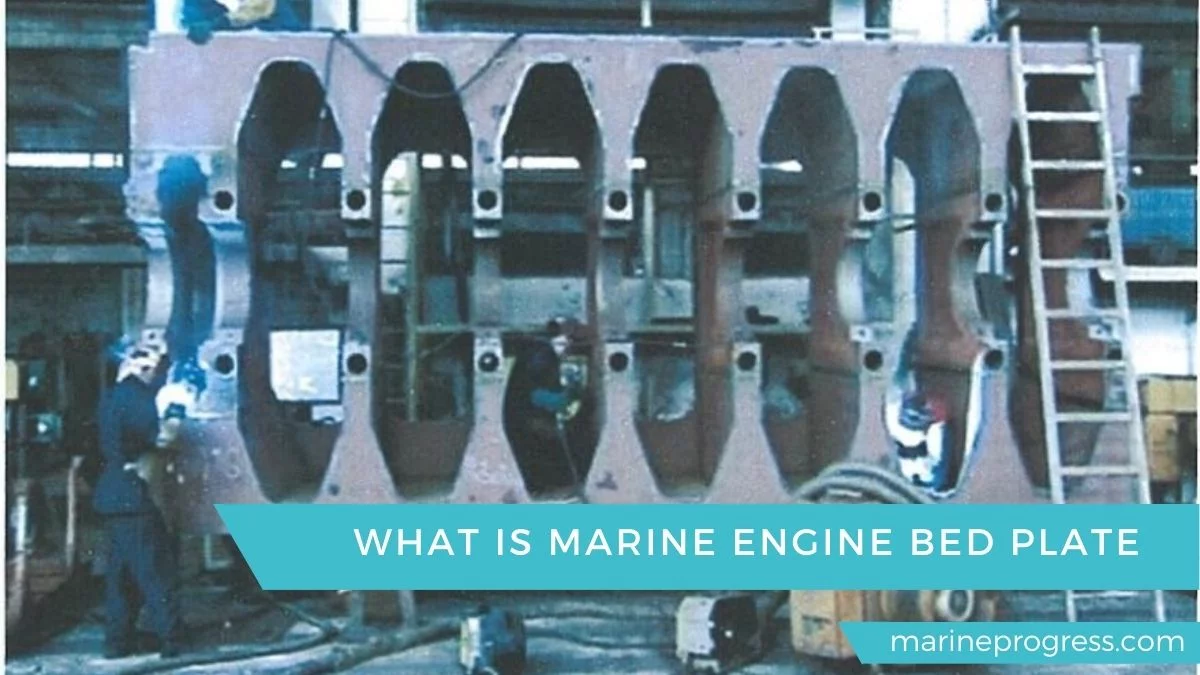

- Bedplate – The foundation of the engine that supports the crankshaft and absorbs dynamic loads.
- A-Frame – Mounted above the bedplate, it houses the crosshead guides and supports the entablature.
- Entablature – Contains the scavenge air box, cylinder liners, and cylinder lubrication system.
- Cylinder Cover – Seals the top of the cylinder and holds the fuel injector and starting air valve.
- Exhaust Valve – Located on the cylinder cover, it opens during the exhaust phase to release combustion gases.
Each of these parts plays a critical role in engine function, strength, and durability. MarineProgress provides dedicated articles for each of these components to help readers explore their construction and maintenance in more detail.
Visual Overview: The 2-Stroke Diesel Cycle
To better understand the internal process, here’s a simplified breakdown of how a 2-stroke marine diesel engine operates:
Engine Model Numbering: Stroke, Bore, and Configuration
Manufacturers like MAN B&W and Wärtsilä/WinGD use standardized engine naming systems that reveal critical technical details such as cylinder count, bore size, stroke type, and control mechanism.
🔍 MAN B&W Engine Code Example: 6S70ME-C10.5
- 6 = Number of cylinders
- S = Slow-speed engine (crosshead type)
- 70 = Cylinder bore diameter in centimeters (70 cm)
- ME = Electronically controlled engine (no camshaft)
- C = Camshaft-less design variant
- 10.5 = Engine mark/version (indicates improvements or generation upgrades)
This naming convention allows engineers to quickly understand the engine’s mechanical structure and size. For example, a 6S70ME-C10.5 is a six-cylinder, long-stroke, electronically controlled engine with a 70 cm bore, optimized for fuel efficiency and digital control.
🧪 MAN B&W Dual-Fuel Code Example: 5G70ME-GI10.5
- 5 = 5 cylinders
- G = Gas-capable version
- 70 = 70 cm bore
- ME-GI = Electronically controlled, Gas Injection system
- 10.5 = Engine generation/mark
The “G” identifier in some models denotes the engine’s suitability for gas-fueled operation, commonly used in LNG-capable ships. The ME-GI series is well-known for its dual-fuel flexibility and high efficiency.
🔍 Wärtsilä / WinGD Engine Code Example: 6X92DF
- 6 = Number of cylinders
- X = Extra-long stroke, ultra-low speed engine platform
- 92 = Cylinder bore diameter in centimeters (92 cm)
- DF = Dual-fuel (LNG and diesel capability)
🔧 Wärtsilä Single-Fuel Example: RT-flex68
- RT-flex = Common rail fuel injection technology
- 68 = Bore size (68 cm)
- No DF = Indicates single-fuel operation (HFO/MDO only)
Wärtsilä’s engine designations emphasize stroke efficiency, bore size, and fuel capabilities. The RT-flex and X-series engines offer industry-leading control systems and energy optimization.
Understanding these designations helps in choosing engines suited for specific ship types and regulatory environments.
Engines with higher bore values and longer strokes are generally more efficient at low speeds—ideal for tankers and bulkers. Short-stroke engines tend to have lower bore numbers and are used in container ships that need higher RPM.
Engine Giants: MAN B&W and Sulzer (Now Wärtsilä/WinGD)
🔧 MAN Energy Solutions
MAN B&W, a German giant, is one of the most trusted names in marine propulsion. Their engine series includes:
- MC Series: Reliable, camshaft-based engines.
- ME Series: Electronically controlled with no camshaft, offering better fuel efficiency and easier control.
- ME-GI Series: Dual-fuel engines designed for LNG use—more eco-friendly, lower emissions.
- ME-C and ME-B: Compact, digitally optimized variants with enhanced efficiency.
➡️ Official MAN B&W 2-stroke engine lineup
🔧 Sulzer by Wärtsilä / WinGD
Sulzer, now part of Wärtsilä and marketed under WinGD (Winterthur Gas & Diesel), has led in innovations like common-rail injection.
- RT-Flex Series: The world’s first large-bore common rail 2-stroke marine engine.
- X Series: Long-stroke models built for maximum fuel economy.
- X-DF Engines: Dual-fuel, running on LNG with low-pressure gas injection.
➡️ Explore Wärtsilä’s 2-stroke WinGD engines
Long-Stroke vs Short-Stroke: What’s the Difference?
Marine engines are often described by their stroke-to-bore ratio. This affects not only engine speed but also how efficiently power gets transferred to the propeller.
🔹 Long-Stroke Engines
- Stroke-to-bore ratio: up to 4:1
- Slower RPM (typically 50–80)
- Allow larger propellers
- Better fuel economy
- Ideal for tankers and bulk carriers
🔹 Short-Stroke Engines
- Lower stroke-to-bore ratio
- Higher RPM
- Compact build
- Often used in container ships where height clearance is limited
Matching Engine Type to Ship Type
🚢 Tankers & Bulk Carriers
These ships prioritize fuel efficiency over speed. Most use long-stroke engines with fewer cylinders (often 6 or 7). They sail slowly but steadily, minimizing fuel costs over long distances.
🚚 Container Ships
Here, speed matters. They tend to use short-stroke engines with 8 to 12 cylinders. These engines spin faster and are better suited for tighter engine rooms.
🚗 Ro-Ro Ships
Roll-on/roll-off (Ro-Ro) vessels, used for transporting wheeled cargo like cars, trucks, and trailers, typically operate on fixed schedules and require engines with quick load response and consistent fuel economy. These ships often use medium-speed 2-stroke or electronically controlled long-stroke engines that balance power with flexibility in varying port schedules and operating conditions.
⚓ Offshore Supply Vessels & Tugs
These specialized workboats operate in demanding environments—often maneuvering near offshore rigs, platforms, or harbors. As such, they rely on 2-stroke marine engines with quick load response, reliable torque at low speeds, and enhanced maneuverability. Many are equipped with controllable pitch propellers and shaft generators that benefit from electronically controlled engine systems.
🛳️ Cruise Ships
While most large cruise ships today use medium-speed 4-stroke engines in diesel-electric configurations, several long-range cruise vessels or hybrid polar expedition ships now feature advanced 2-stroke marine engines for propulsion, thanks to their high efficiency and long maintenance intervals. Environmental compliance and noise reduction are also major considerations.
⚓ Naval Vessels
Some auxiliary naval vessels (like fleet oilers, training ships, or logistics carriers) use 2-stroke marine engines when endurance and long-range capability are prioritized. These engines are favored for their low maintenance cycles and ability to run on multiple fuel types in varied global conditions.
🧪 LNG Carriers
LNG carriers increasingly use dual-fuel engines like ME-GI or X-DF to take advantage of the onboard cargo as fuel. These engines offer operational flexibility and significantly lower emissions, especially when running on LNG. While environmental regulations apply to all vessel types, LNG carriers are uniquely positioned to comply by using their own transported fuel as a cleaner-burning energy source.
What’s New in the Marine Engine World?
The marine industry is rapidly adapting to environmental demands and fuel price volatility. Here are some innovations shaping the next generation of 2-stroke marine engines:
- Dual-Fuel Technology: Ships can now run on LNG, MGO, or heavy fuel, switching as needed.
- Common Rail Injection (RT-flex): Allows precise control of injection timing and pressure.
- EGR (Exhaust Gas Recirculation): Helps meet NOx emission standards.
- Variable Turbine Geometry: Improves turbo efficiency across load ranges.
- Load Dependent Cooling (LDC): Adjusts cooling based on engine load to reduce wear.
Frequently Asked Questions
What makes 2-stroke engines better for ships?
They deliver one power stroke per crankshaft revolution—providing more torque, better fuel efficiency, and reliable performance over long durations.
Are MAN B&W and Sulzer engines really that different?
Yes. MAN B&W is leading in electronic control and dual-fuel innovations (like ME-GI), while Sulzer’s RT-Flex and X-DF engines are pioneers in common rail and LNG propulsion.
Do these engines still run on heavy fuel oil?
Many still do, but modern models are moving toward LNG, low-sulphur fuel oil (VLSFO), and dual-fuel capability to meet stricter emission rules.
How are emissions controlled in these engines?
With EGR systems, SCR units, and better combustion control via electronic injection and turbocharging. Some also use LNG to cut down SOx and NOx emissions.
Conclusion
2-stroke marine engines are engineering marvels—strong, efficient, and adaptable. These engines dominate global shipping due to their unmatched performance and reliability in harsh marine environments.
The future of 2-stroke marine engines is rooted in cleaner fuels, smart electronics, and long-term sustainability. As global shipping demands smarter propulsion systems, manufacturers like MAN and Wärtsilä are leading the evolution of 2-stroke marine engines with next-gen dual-fuel technologies and intelligent control systems.
➡️ For diagrams, technical tools, and more insights into 2-stroke marine engines, visit MarineProgress.com — and feel free to leave a comment if you found this guide helpful or have questions!
